概述 / Overview

配电箱分动力配电箱和照明配电箱，是配电系统的末级设备。配电箱是按电气接线要求将开关设备、测量仪表、保护电器和辅助设备组装在封闭或半封闭金属柜中，构成低压配电装置。
我公司生产的排骨型配电箱采用国际先进设计理念，从出线数量，电气连接，安全防护等多方面进行创新，打造出的一款高端配电设备。主要用于数据中心，半导体厂房，高端建筑等终端配电场所。

Distribution switchboard is divided into power distribution box and lighting distribution box, is the last stage of the distribution system equipment.Distribution box is according to the electrical wiring requirements of switchgear, measuring instruments, protective appliances and auxiliary equipment assembled in closed or semi-closed metal cabinet, constitute a lowvoltage distribution device.
The spareribs type distribution box produced by our company adopts the international advanced design concept, innovates from the number of outgoing lines, electrical connection, safety protection and other aspects, and creates a high-end distribution equipment.Mainly used in data centers, semiconductor factories, high-end buildings and other terminal distribution sites.

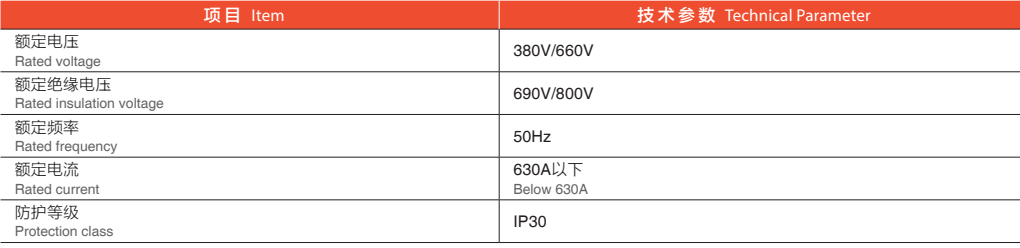

开关柜技术参数  /Techniacl Paramenters of Switchgear

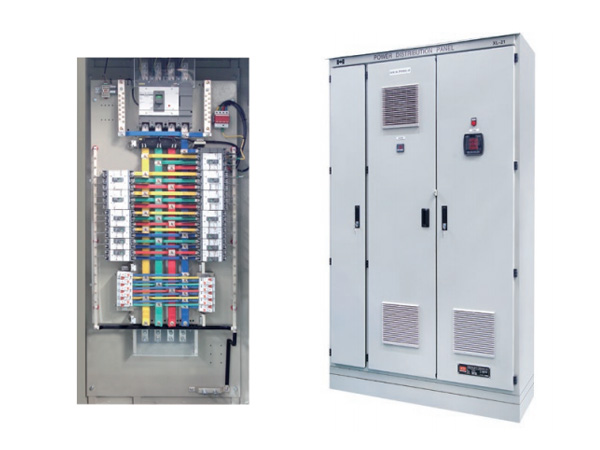

开关柜结构特点 / Switch Cabinet Structure Features

• 排骨式布置，相序清晰明了，不易错相；
• 出线断路器与电气干线单独铜母线连接，不采用导线套接；
• 双层门结构，内部元件被二层绝缘板覆盖，开门防护等级IP20，操作更加安全；
• 具有独立的电缆室，进出线电缆与电气元件分开布置，避免杂乱无章；
• 门板配置百叶窗通风栅，既包装通风散热又保证防护等级；
• 柜顶配防滴水帽檐，前高后低，可防止滴水进入柜内。

• Sparerib layout, phase sequence is clear, not easy to wrong phase;
• The outgoing circuit breaker is connected to the separate copper busbar of the electrical main line without wire bushing;
• Double door structure, internal components are covered by two layers of insulation board, door protection class IP20, more safe operation;
• With independent cable room, incoming and outgoing cables and electrical components separately arranged to avoid chaos;
• The door plate is equipped with louver ventilation grid, which not only packaging ventilation and heat dissipation but also ensure protection level;
• The top of the cabinet is equipped with anti -drip brim, which is high in front and low in back to prevent dripping water from entering the cabinet.
