概述 / Overview

KYN61-40.5型金属铠装移开式开关柜，适用于三相交流50Hz，40.5kV母线电力系统，并对电路实行控制，保护和监测，满足IEC60298，GB3906，DL404等标准的要求，具备完善的“五防”功能。

我公司研发生产的KYN61型高压柜外壳完全是由覆铝锌板经数控机床加工多重折弯成后用螺栓组装而成，具有很高的机械强度，有效地保证了产品质量。手车与柜体的配合精准度高，手车推进拉出十分轻便，互换性强，外形美观、方案齐全、使用安全可靠。最高额定电流可达到4000A，产品最高使用海拔可达3500米。该产品广泛应用于发电厂，通讯，电子，冶金，新能源等领域。

KYN61-40.5 metal-armored shifting switch cabinet is suitable for three-phase AC 50Hz,40.5kV single busbar section power system, it also control, protection and monitoring for the circuit, meet the requirements of IEC60298, GB3906, DL404 and other standards, and has perfect "five preventions" function.

The switchgear enclosure developed and produced by our company selects the imported Al zinc sheet steel processed by CNC machining stool with multiple bending technique adopted.It has high mechanical strength and eectively guarantees the product quality.The matching precision of the handcart and the cabinet body, the handcart pushes and pulls out very light, the interchangeability is good, the appearance is beautiful, the scheme is complete, the use is safe and reliable.The highest rated current of the product can reach 4000A, and the highest use altitude of the product can reach 3500m.The products are widely used in power plants, communications, electronics, metallurgy, new energy and other elds.

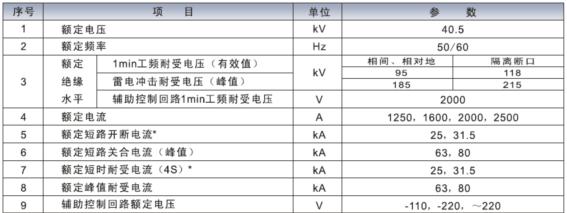

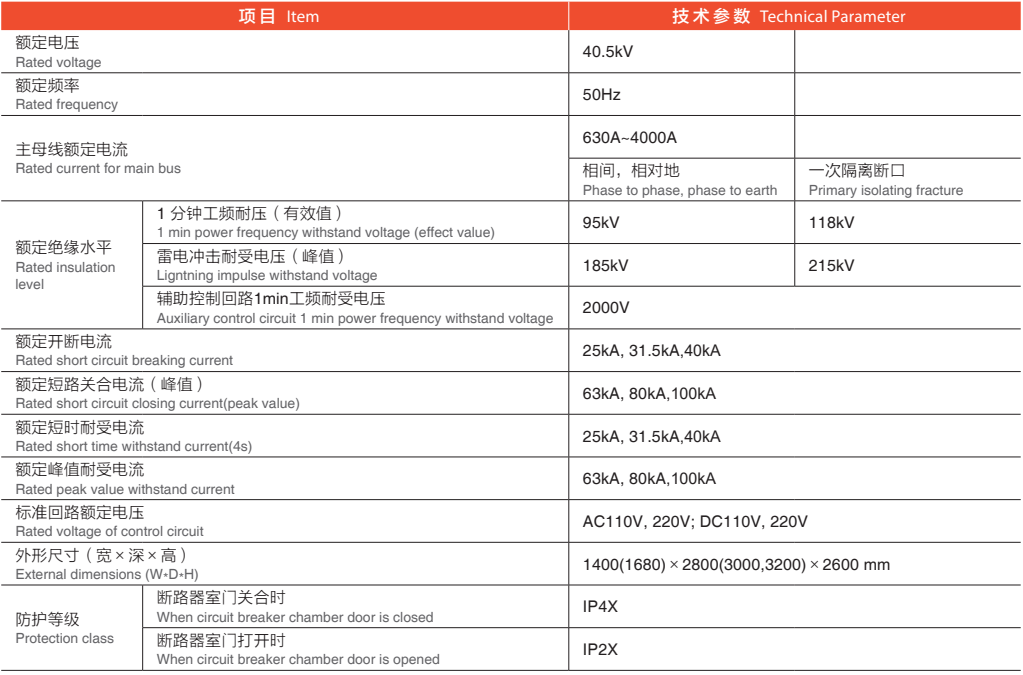

技术参数 / Techniacl Paramenters of Switchgear
