概述 / Overview

KYN28-24型金属铠装移开式开关柜，适用于三相交流50Hz,24kV单母线分段电力系统，并对电路实行控制，保护和监测，满足IEC60298,GB3906,DL404等标准的要求，具备完善的“五防”功能。

KYN28型高压柜是我公司总结多年中置柜生产经验进行完全自主开发设计。柜体采用多重折边工艺，使柜体比其它同类设备整体重量轻、机械强度高、外形美观 ; 因为柜体采用组装式结构，用拉铆螺母和高强度的螺栓联接而成，这样使加工生产周期短、零部件通用性强、占地面积少，便于组织生产。最高额定电流可达到2500A。该产品多用于发达地区新型产业园或出口项目。

KYN28-24 metal-armored shifting switch cabinet is suitable for three-phase AC 50Hz, 24kV single busbar section power system, it also control, protection and monitoring for the circuit, meet the requirements of IEC60298,GB3906,DL404 and other standards, and has perfect "five preventions" function.

KYN28-24 high voltage cabinet is fully developed and designed by our company based on years of experience in cabinet production.the cubicle body is of high accuracy,strong corrosion resistance and inoxidation.Further more it has lighter weight,highter mechanism strength and more beautiful appearance than other similar ones.the body is built up in construction and jointed with bolts and nuts so that the production cycle is shortened,the part generaliztion raised,the space area reduced and the production procedure optimized. The highest rated current of the product can reach 2500A.The products are mainly used in the developed areas of new industrial parks or export projects.

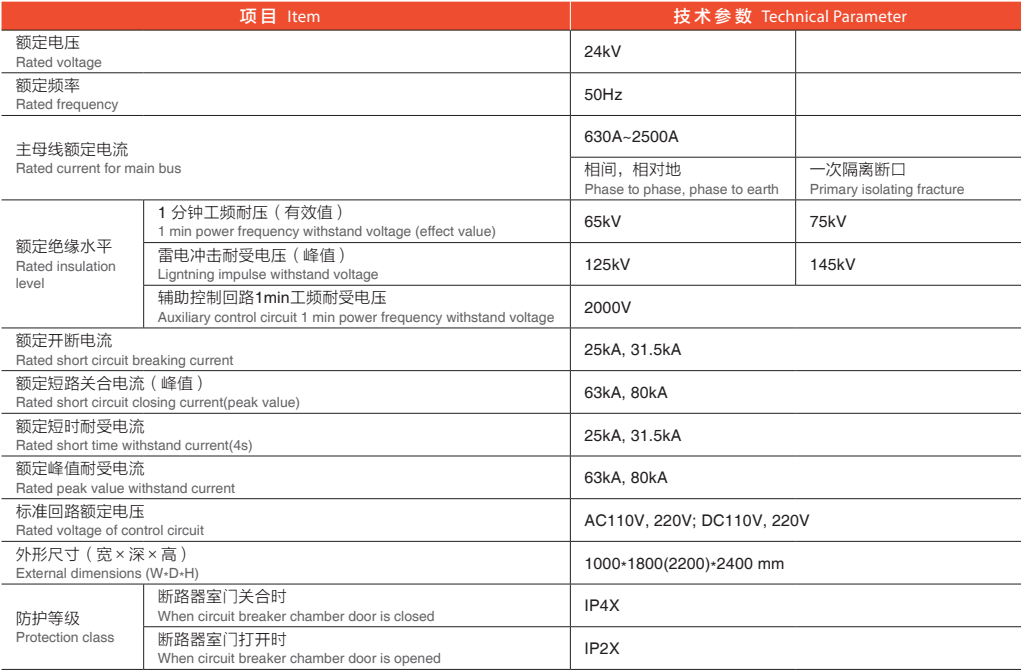

技术参数 / Techniacl Paramenters of Switchgear
