概述 / Overview
GCS 低压抽出式开关柜,是吸收国外先进技术并根据国内用户对增容,计算机接口,动力集中控制,方便安装维护等要求而开发的一种新型低压成套开关设备。技术符合 IEC60439《低压成套开关设备和控制设备》、GB7251.1《低压成套开关设备和控制设备》等标准。
GCS 型低压开关柜适用于发电厂、石油、化工、冶金、纺织、高层建筑等行业的配电系统。在大型发电厂、石化系统等自动化程度高,要求与计算机接口的场所,作为供电系统中的配电、电动机集中控制、无功功率补偿使用的低压成套配电装置。

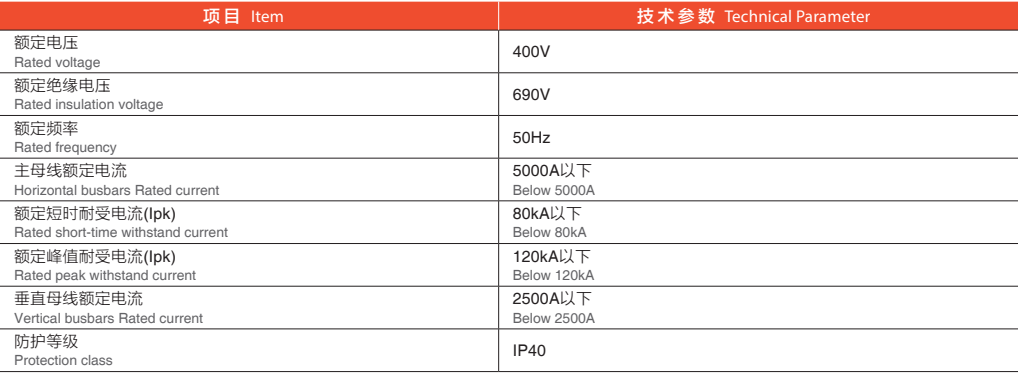

开关柜技术参数 / Techniacl Paramenters of Switchgear
开关柜结构特点 / Switch Cabinet Structure Features
• 同规格的功能单元抽屉可以实现互换;
• 装置的每柜内可以配置 11 个一单元抽屉或 22 个二分之一单元的抽屉;
• 抽屉面板有合、断、试验、抽出等位置的明显标志;
• 功能单元辅助接点对数:一单元以上为 32 线,二分之一单元为 20 线,满足对外接口的也需要;
• 以抽屉为主体,同时具有抽出式和固定式混装结构。
• The same specification of functional unit drawer can be realized interchangeably;
• Each cabinet of the device can be equipped with 11 one-unit drawers or 22 one-half unit drawers;
• Drawer panel has closed, broken, test, pull out and other obvious signs;
• Auxiliary contact logarithm of functional units: 32 lines for more than one unit, 20 lines for half a unit, to meet the needs of external interfaces;
• To the drawer as the main body, at the sametime with withdrawable and xed mixed structure.
